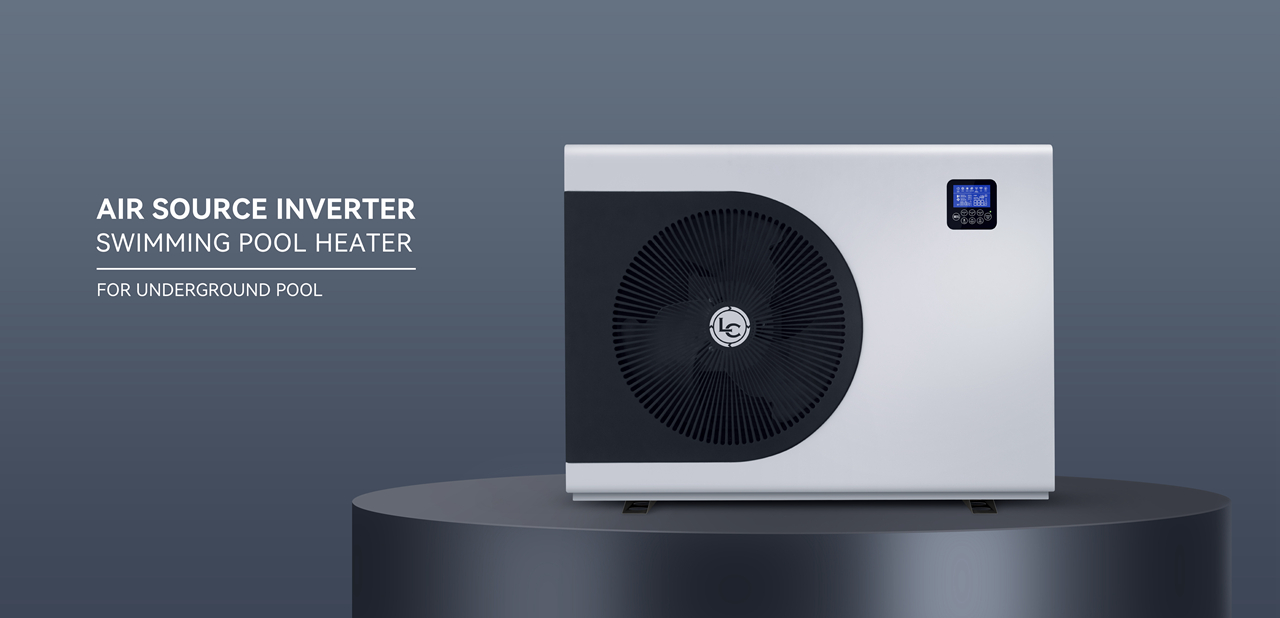

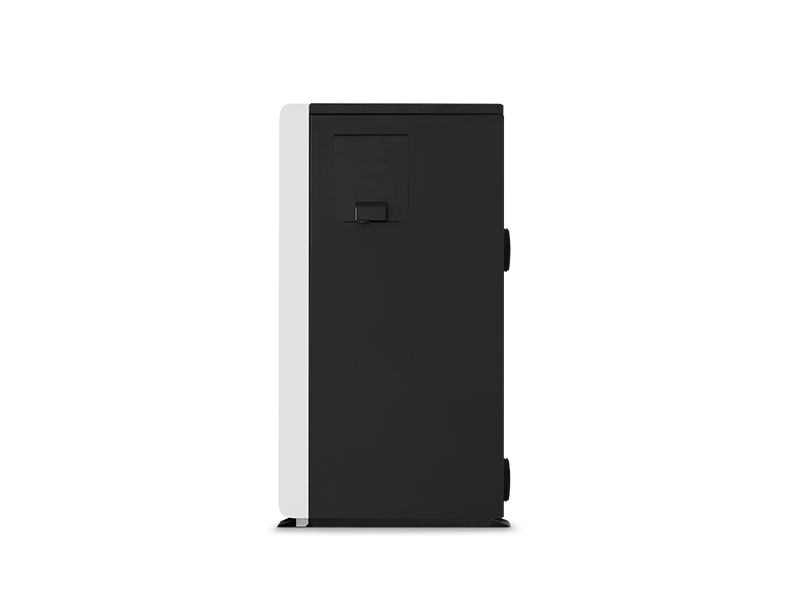

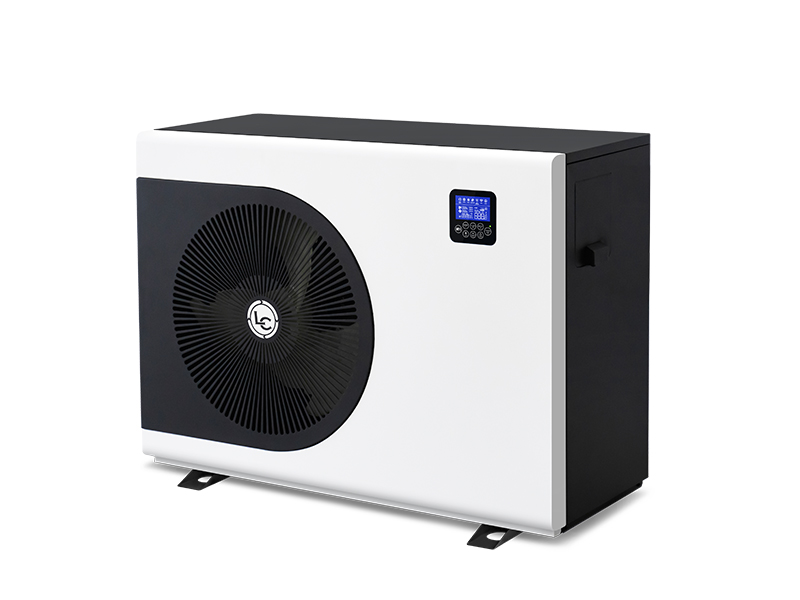

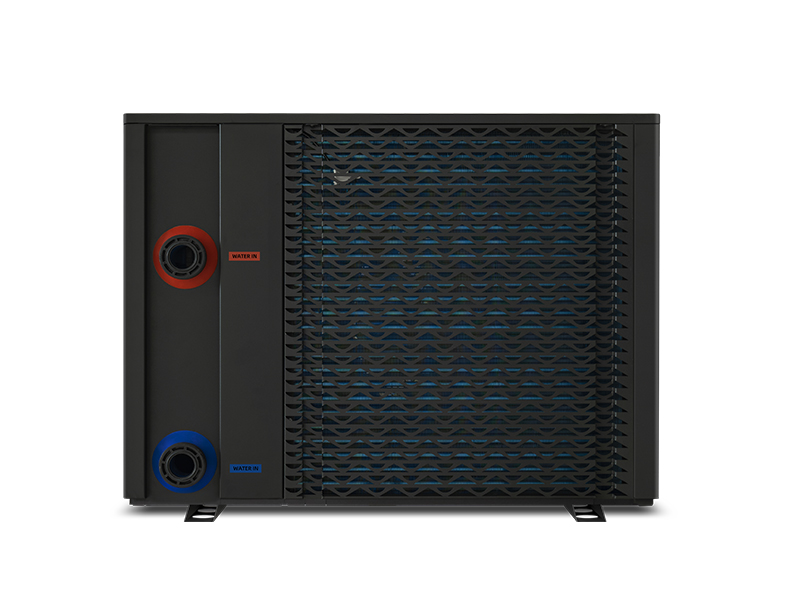

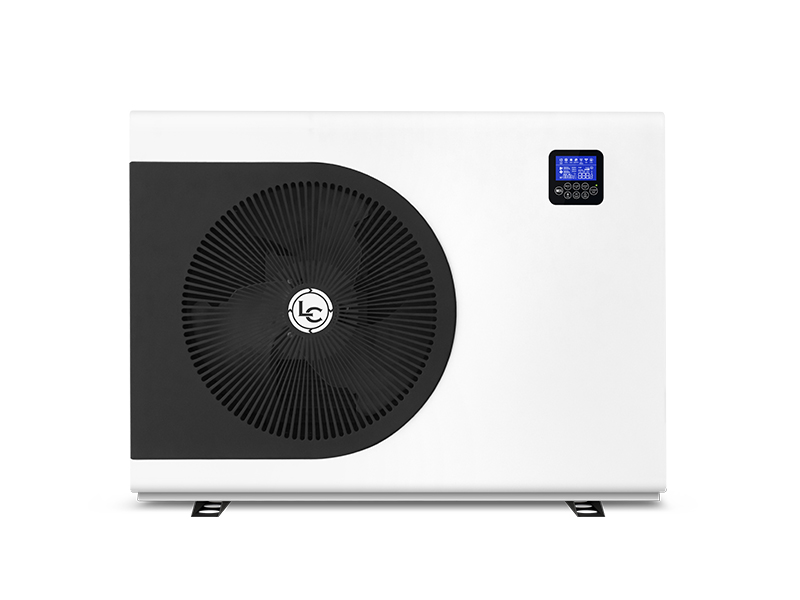

R32 Full Inverter Pool Heat Pump
R32 Full Inverter Pool Heat Pump
R32 Full Inverter Pool Heat Pump
R32 Full Inverter Pool Heat Pump
R32 Full Inverter Pool Heat Pump
R32 Full Inverter Pool Heat Pump
R32 Full Inverter Pool Heat Pump
R32 Full Inverter Pool Heat Pump
R32 Full Inverter Pool Heat Pump
R32 Full Inverter Pool Heat Pump
R32 Full Inverter Pool Heat Pump
R32 Full Inverter Pool Heat Pump

R32 Full Inverter Pool Heat Pump

★: - Auto operation, Auto-restart, Auto defrost

★: - Heating and cooling functions available

★: - Wide ambient working range: -10°C to 43°C

★: - DC inverter technology creates more economical and powerful heat pump system

★: - R32 refrigerant

★: - Lower heating bills

★: - Lower CO2 Emissions

Share:

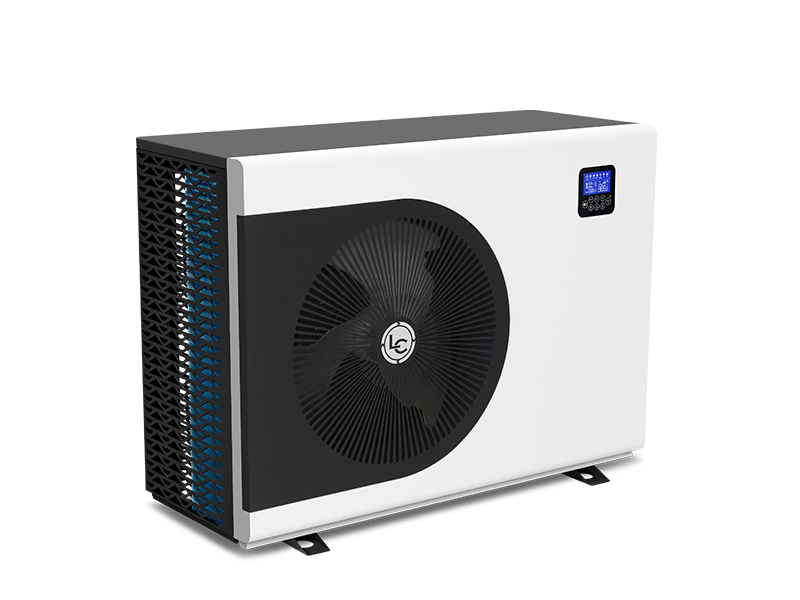

R32 Full Inverter Pool Heat Pump

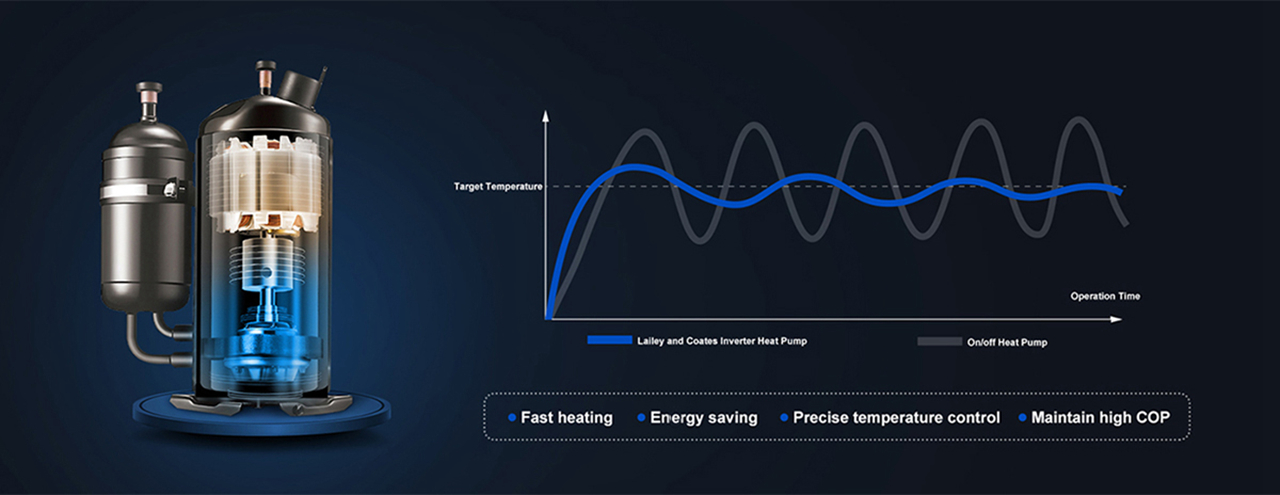

MATURE FULL INVERTER TECHNOLOGY

The application of an improved compressor and inverter technology synergies is a crucial element for the unit to be a top performer which can raise the energy efficiency and provide homeowners with greater cost-savings.


R32 Full Inverter Pool Heat Pump

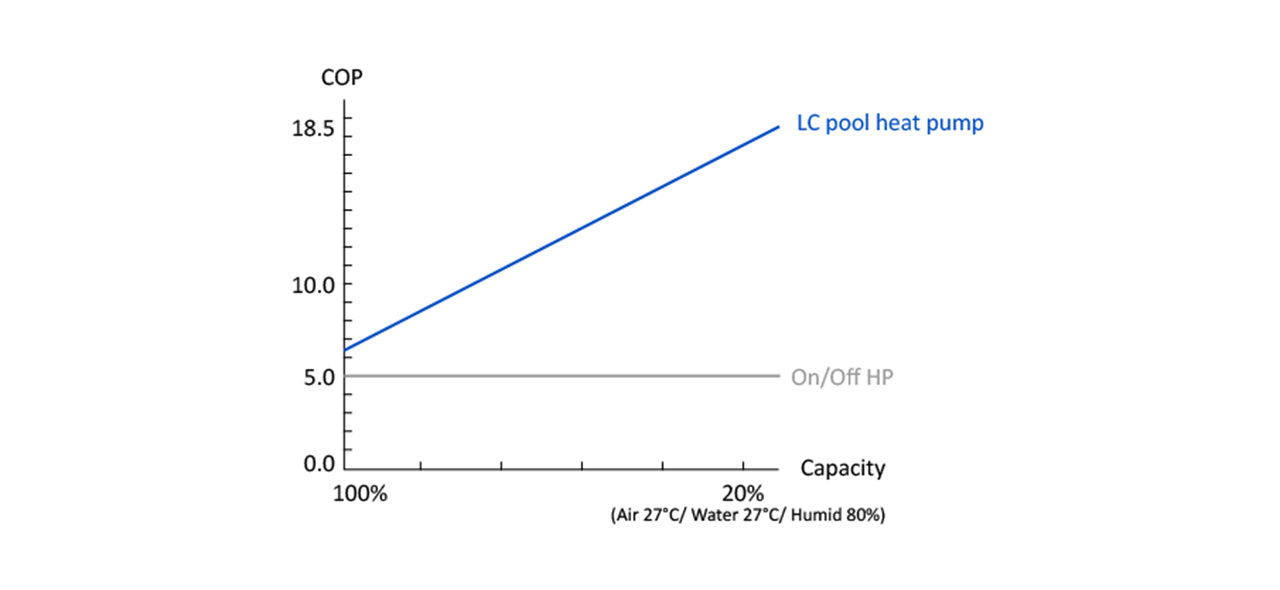

HIGH EFFICIENCY OF COP 18.5

R32 full inverter pool heat pump can reach a COP as high as 18.5 at Air 27°C/ Water 27°C/ Humid 80%.


R32 Full Inverter Pool Heat Pump

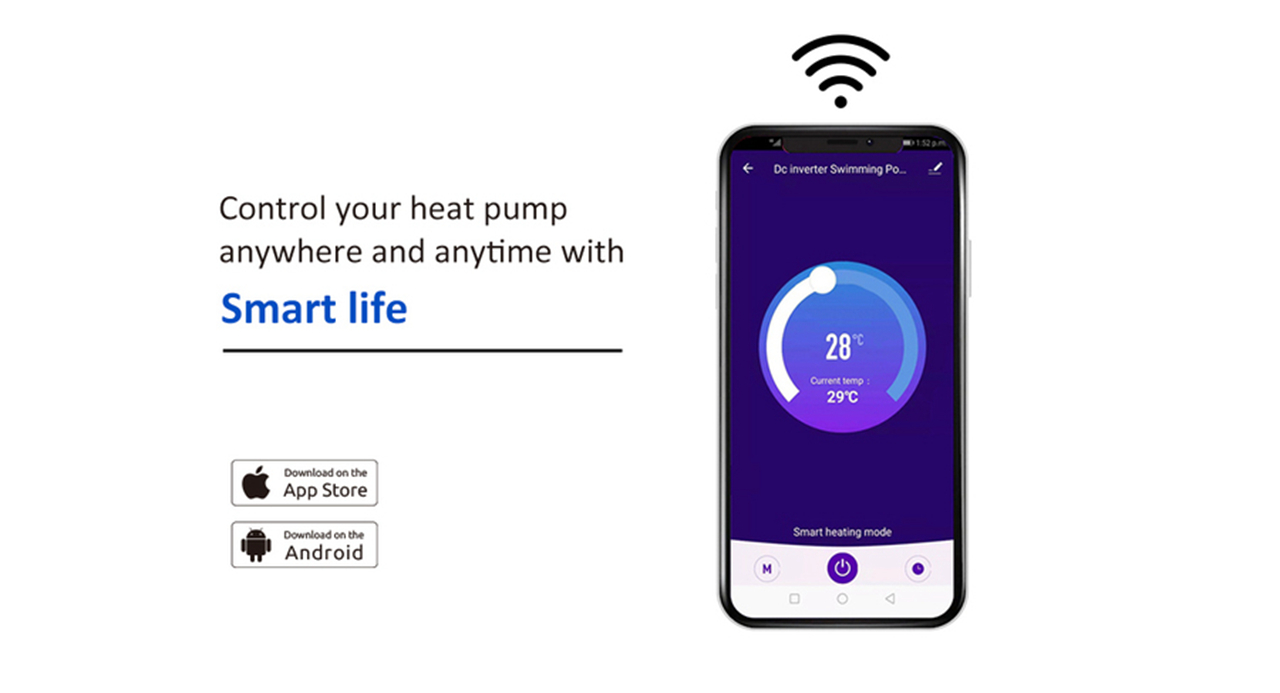

APP CONTROL

With a Wi-Fi and 4G/5G connection, you can take full control of your swimming pool heat pump on your smartphone via an app. The app can be found in the App Stores.


R32 Full Inverter Pool Heat Pump

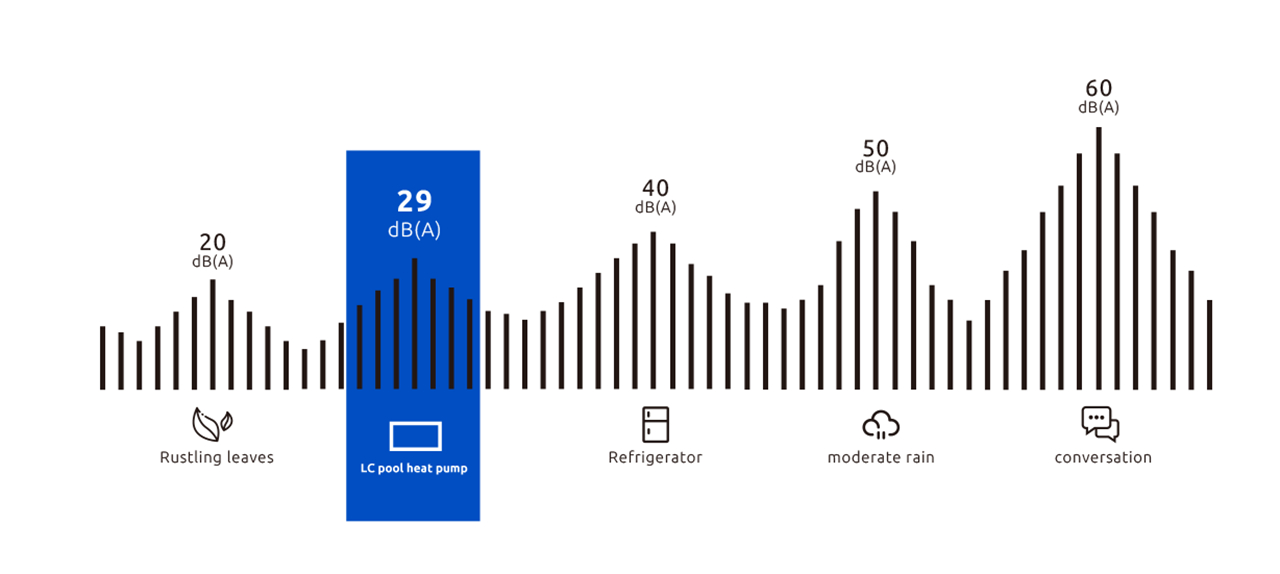

LOW NOISE RUNNING

A fully enclosed cabinet is specially designed for the compressor so that the running noise can be kept inside and the noise of the whole unit can maintain very low.The average sound level is 29dB(A) at 1. meter.


R32 Full Inverter Pool Heat Pump

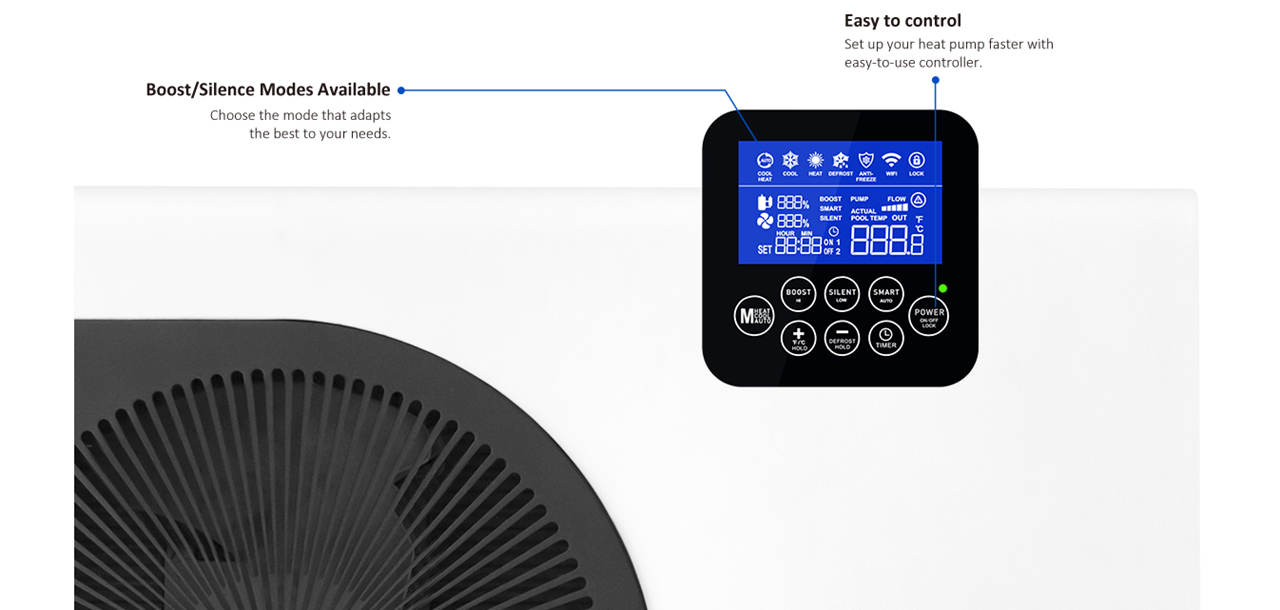

SMART TOUCH CONTROLLER


R32 Full Inverter Pool Heat Pump


R32 GAS-LOW GWP

Compared to the refrigerantswidely used today, such as R410A, R32 has a global warming potential that is two-     third lower and it is remarkable for its low environmental imact, which speed up its popularity in the industry.


ENERGY SAVING APPLICATION

LC applies the latest technology in heat pump   field to achieve the trile energy saving effect on unit. application and behavior.


R32 Full Inverter Pool Heat Pump

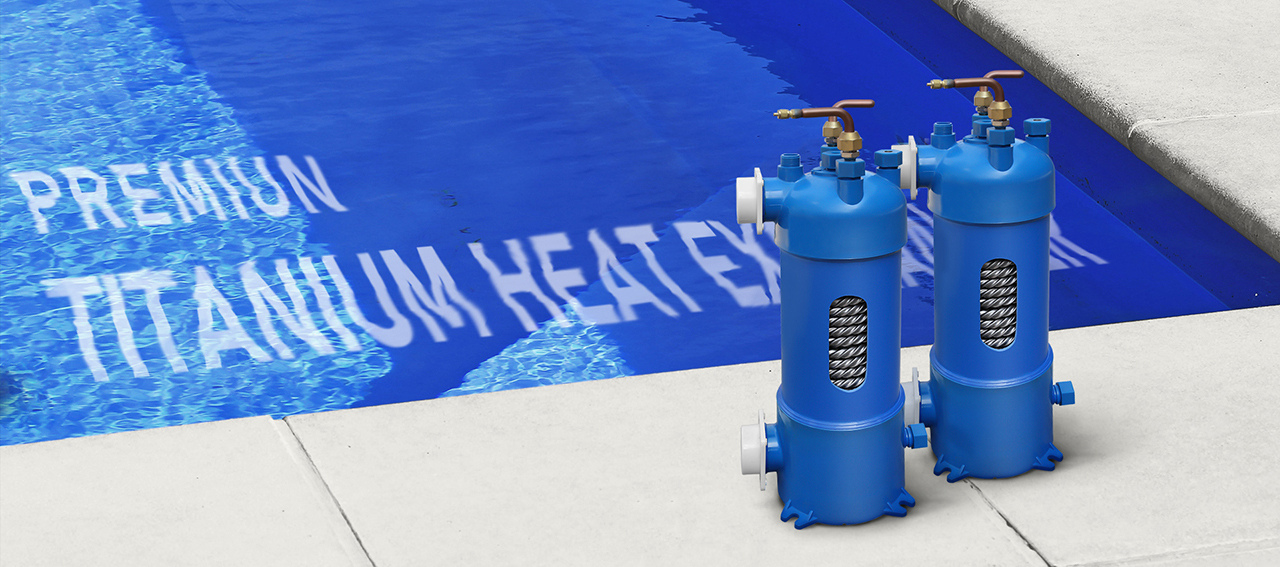

PREMIUM TITANIUM HEAT EXCHANGER


Titanium has the super strong corrosion resistant ability. Our titanium heat exchanger use seamless pure titanium tube as heat conductor, can ensure the titanium heat exchanger can be used for a long time, without any cost in the after-sale services. Due to its good properties, the titanium heat exchanger widely used in: Swimming pool equipment, Aquarium chiller, Marine refrigerant system, Solar energy heater, Aquaculture, Pharmacy, Food industry, Electroplating industry and some heat recovery from the waste water or exhaust gas. Main material and property: Molded cups titanium heat exchanger.

The titanium tube heat exchanger in PVC shell is reliable for pool heating system, good prevent the corrosion of chlorine in the swimming pool.


R32 Full Inverter Pool Heat Pump

ModelLCSPC-BP50RLCSPC-BP70RLCSPC-BP90RLCSPC-BP120RLCSPC-BP180R
Air 27℃ / Water 27℃
Humid.80%
Capacity(kW)9.0312.0215.2519.2127.28
COP range6.30~17.56.55~18.27.32~18.56.53~18.26.20~15.0
Air 15℃ / Water 26℃
Humid.70%
Capacity(kW)5.947.5410.8513.6119.71
COP range5.1~8.25.17~8.25.2~8.55.01~8.14.61~8.0
Working ambient temperature-10~43
Power supply220V / 1Ph
Rated input powerkW0.12~1.350.16~1.860.2~2.240.23~2.870.75~5.22
Rated input currentA0.55~6.140.73~8.50.92~10.21.05~13.053.45~23.7
Maximum imput currentA6.89.111.514.4825.5
RefrigerantR32
Compressor modelTOSHIBATOSHIBAMITSUBISHIMITSUBISHITOSHIBA
Compressor typeInverter
Wifi connectivityYes
Air flowHorizontal
EvaporatorHydrophilic fin and copper tube
CondenserSpiral threaded Titanium in PVC
Package dimensions
L*W*H mm850*390*688960*408*7931150*480*843
Unit net dimensionsL*W*H mm826*379*552933*401*6571125*470*707
Net weightkg3537476166
Sound pressure dB(A) 10m< 29< 29< 29< 30< 30
Water proof levelIPX4
