Specially designed for above-ground pool heating, which is the perfect partner of your above-ground pool.
Welcome to our website our e-mail info1@laileyandcoates.com.cn
Specially designed for above-ground pool heating, which is the perfect partner of your above-ground pool.

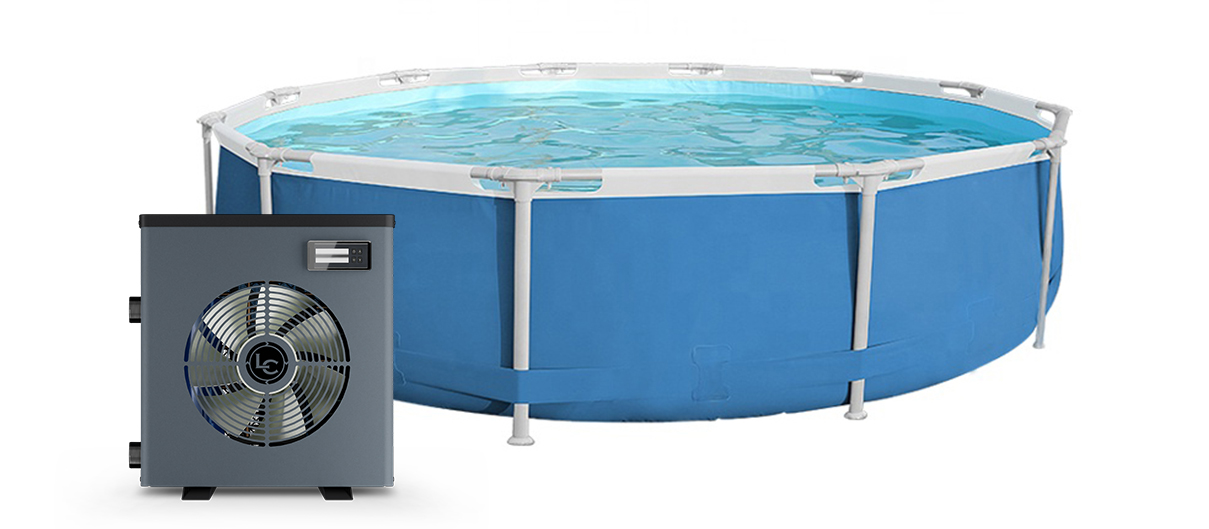

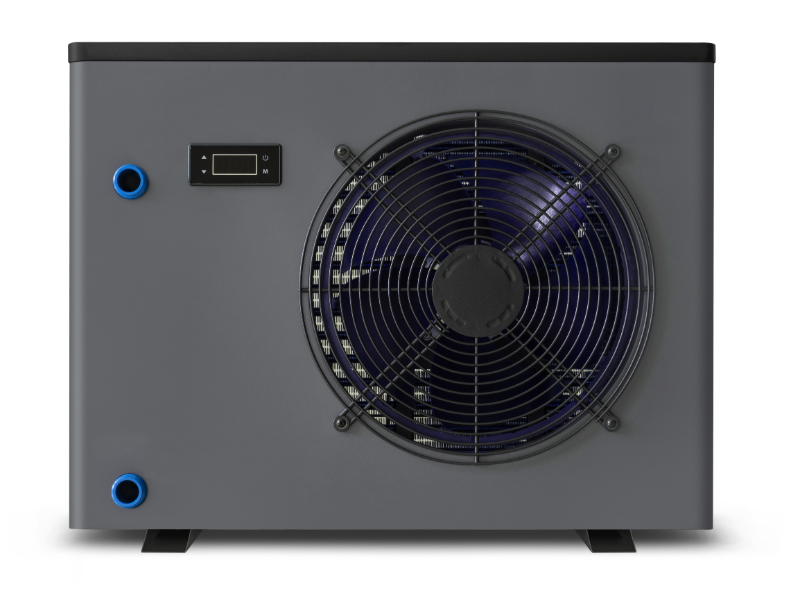

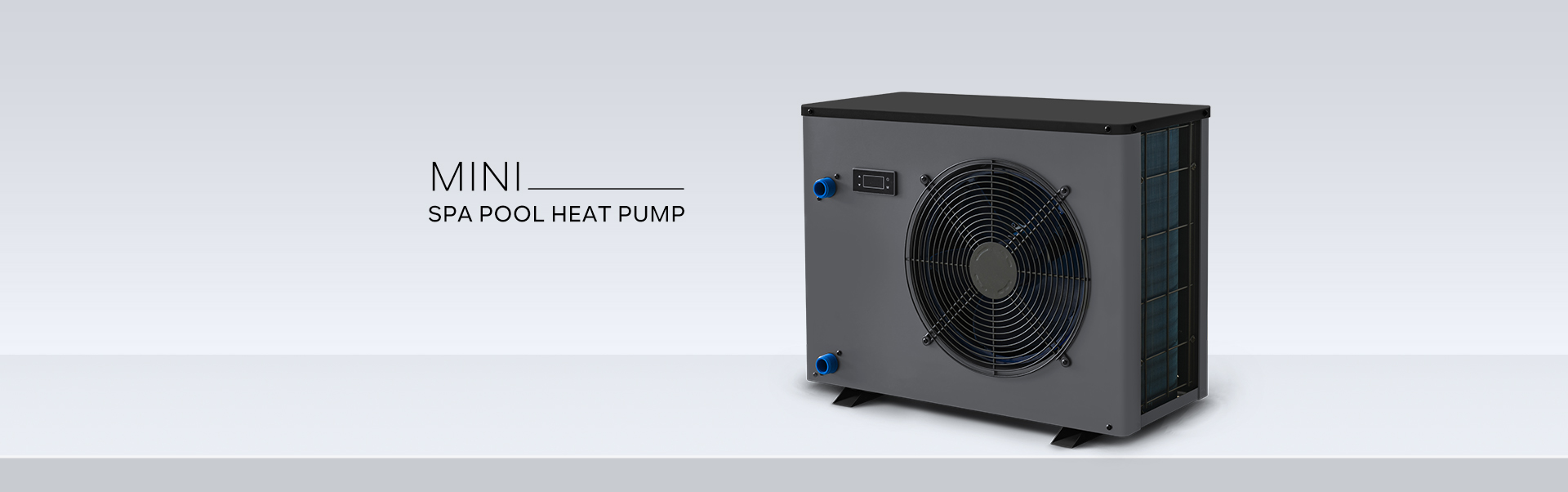

DESIGN FOR SMALL SIZE SWIMMING POOL
Specially designed for above-ground pool heating, which is the perfect partner of your above-ground pool.
ECO-FRIENDLY R32

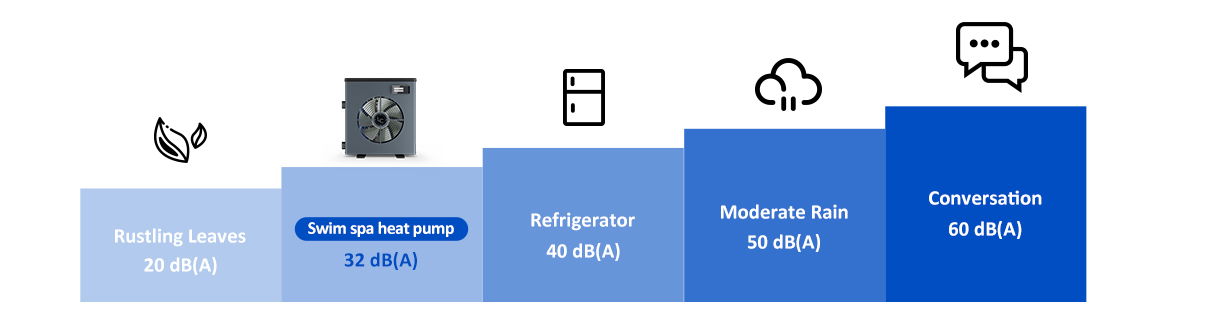

LOW NOISE
A fully enclosed cabinet is specially designed for the compressor so that the running noise can be kept inside and the noise of the whole unit can maintain very low.

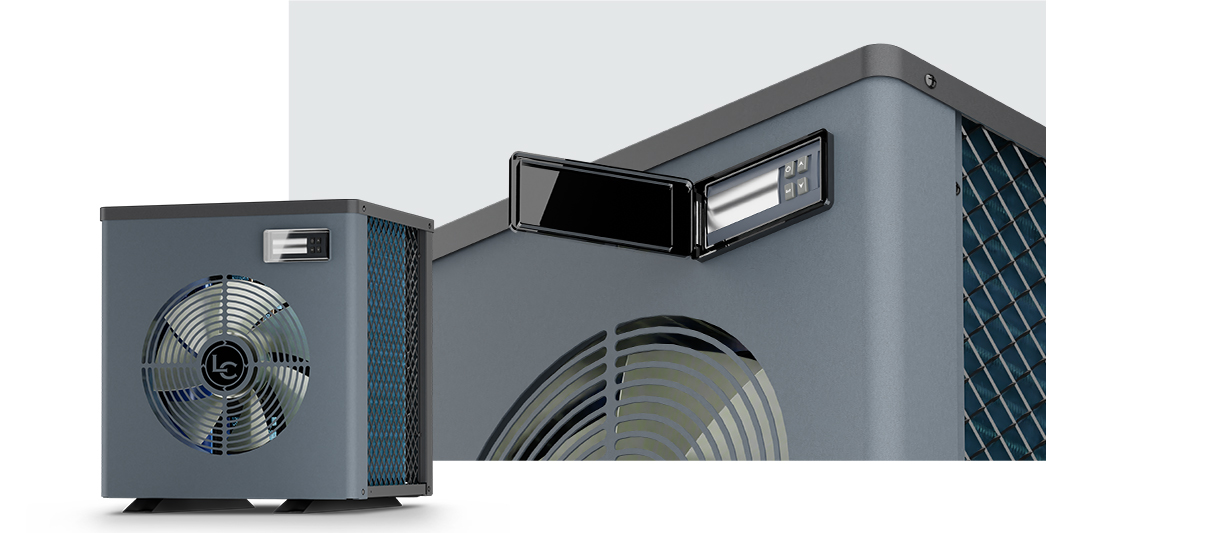

EASY CONTROL
Our swim spa heat pump has a simple control panel with an LED display. It is easy to operate.

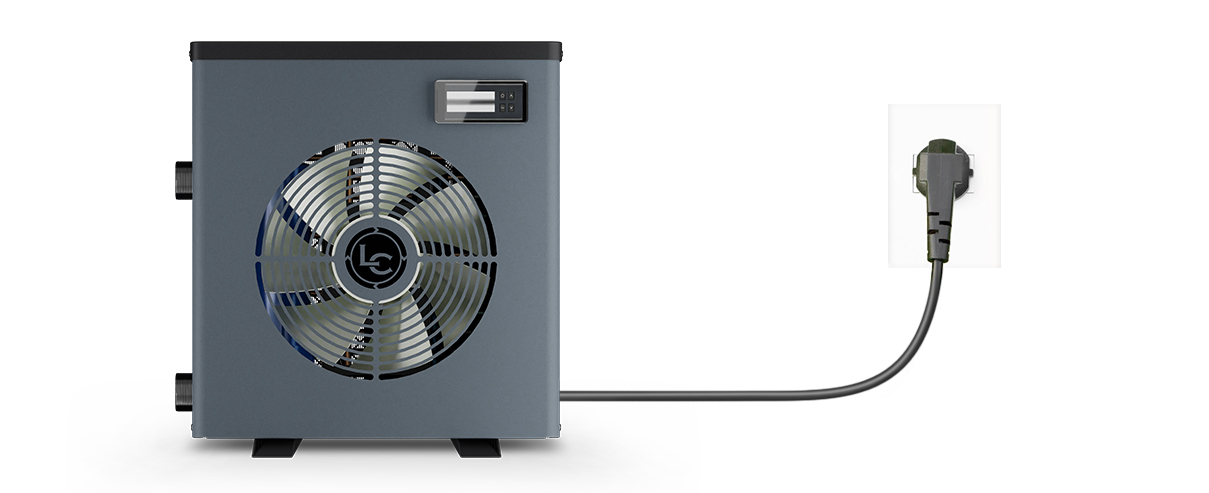

PLUG & PLAY
The swim spa heat pump is light and easy to install, and can be portable every where. Equiped with a plug & play power connection. It’s compact design and horizontal discharge, which is convenient during installation process.
| Model | LCSP-30RCMINI | LCSP-50RCMINI | LCSP-70RCMINI | |
| Ambient26℃Water26℃in,28℃out | Capacity(kW) | 3.21 | 5.37 | 7.83 |
| powerinput(kW) | 0.59 | 0.67 | 1.08 | |
| COP | 5.44 | 7.99 | 7.26 | |
| Ambient15℃Water26℃in,28℃out | Capacity(kW) | 2.12 | 3.98 | 5.59 |
| powerinput(kW) | 0.52 | 0.66 | 0.89 | |
| COP | 4.06 | 6.00 | 6.28 | |
| Powersupply | V/Hz | 220-240V~50Hz | 220-240V~50Hz | 220-240V~50Hz |
| Max powerinput | kW | 0.68 | 1.04 | 1.71 |
| Max current | A | 3.09 | 4.82 | 7.85 |
| Quantityof compressor | 1 | |||
| Compressortype | Rotary | |||
| Evaporator | Hydrophillicaluminiumfin | |||
| Water flow | m³/h | 1.30 | 2.31 | 3.36 |
| Refrigerant | R32 | R32 | R32 | |
| Minpressure/Maxpressure | Mpa | 1.5/4.15 | 1.5/4.15 | 1.5/4.15 |
| Net dimension(L*W"H) | mm | 447*320*397 | 636*277*496 | 696*297*544 |
| Sound pressure(10m) | dB(A) | <32 | <32 | <32 |
| Waterconnection | mm | 32 | 32 | 32 |
| Fan direction | Horizontal | Horizontal | Horizontal | |
| Waterproofgrade | IPX4 | IPX4 | IPX4 | |
