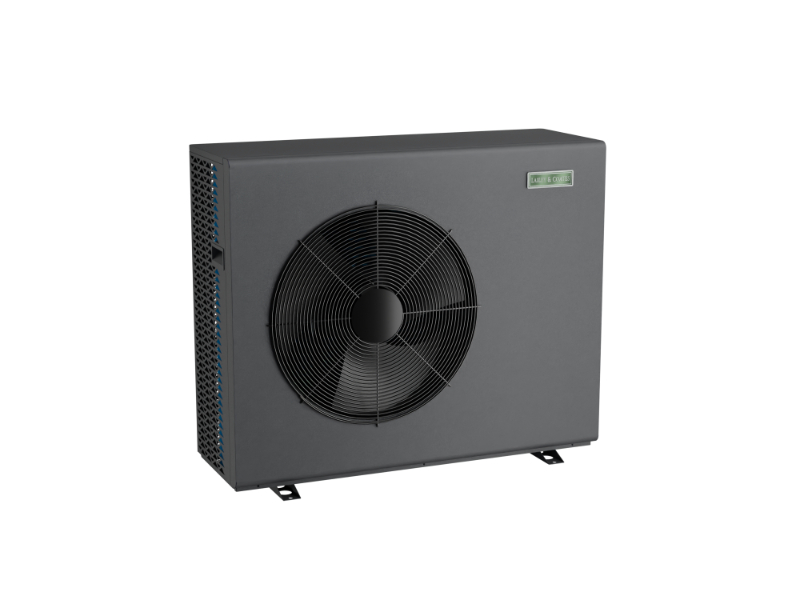

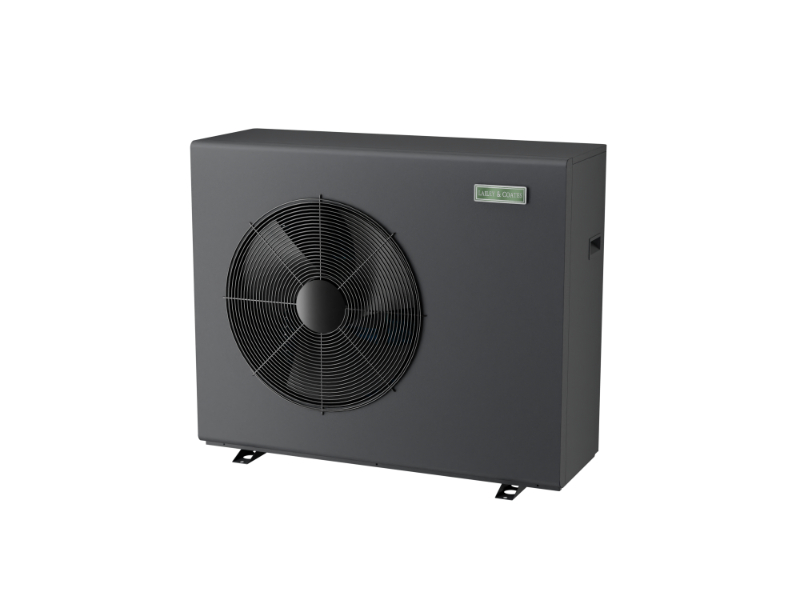

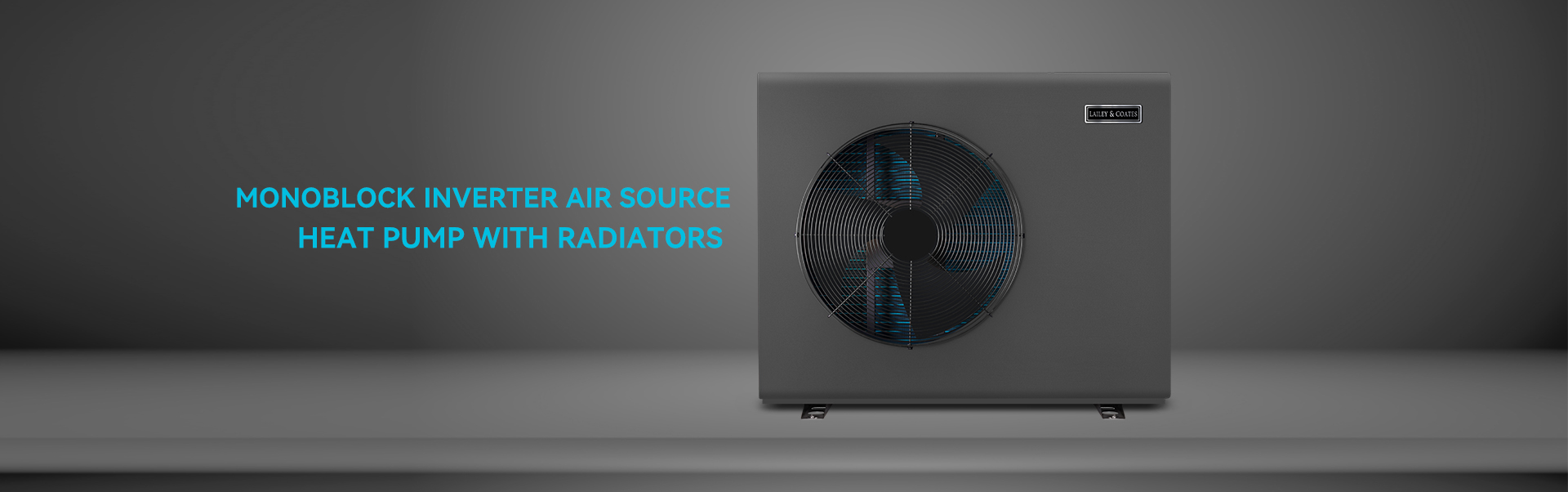

Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators
Monoblock Inverter Air Source Heat Pump with Radiators

Monoblock Inverter Air Source Heat Pump with Radiators

The application of an improved compressor and inverter technology synergies is a crucial element for the unit to be a top performer which can raise the energy efficiency and provide homeowners with greater cost-savings.

Share:

KEYMARK / MCS CERTIFIED

Monoblock Inverter Air Source Heat Pump with Radiators


MATURE FULL INVERTER TECHNOLOGY

The application of an improved compressor and inverter technology synergies is a crucial element for the unit to be a top performer which can raise the energy efficiency and provide homeowners with greater cost-savings.


Monoblock Inverter Air Source Heat Pump with Radiators

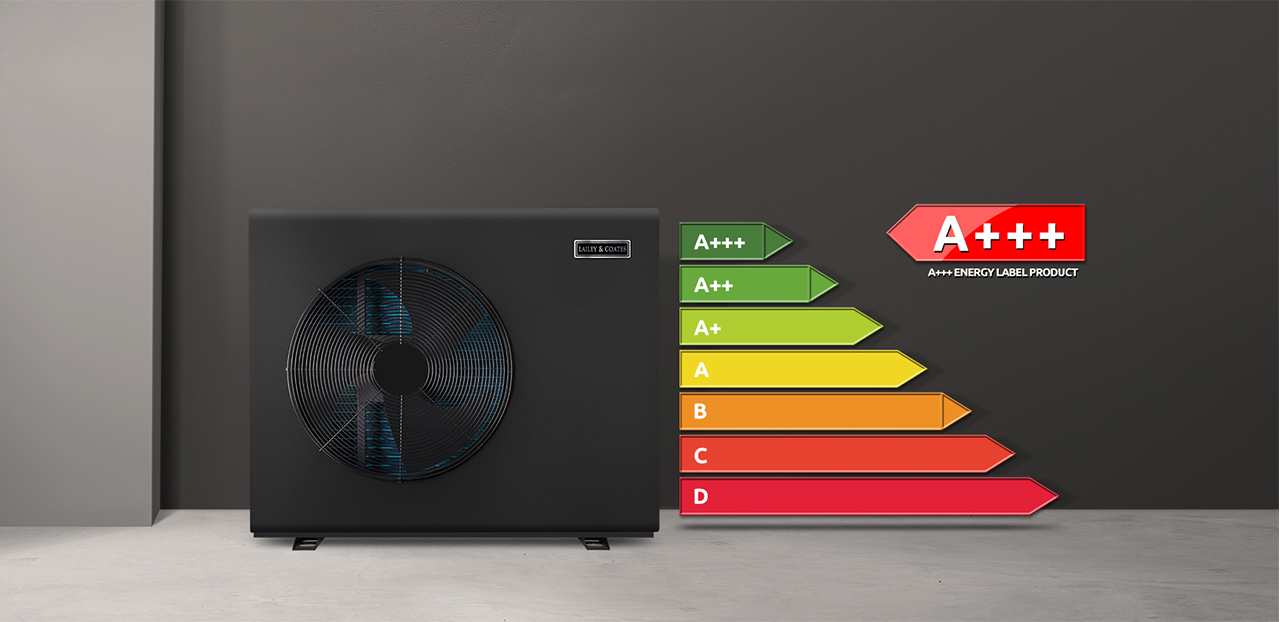

ENERGY EFFICIENCY RATING LABEL

Space heating Series is specially developed with the most cutting-edge heat pump technology and modern design to meet stringent requirements for efficiency, stability and quietness. Not only does Space heating Series use R32 green gas, but also is rated with A+++ energy label. With top energy rating A+++, the unit is energy efficient and can greatly reduce energy bills for users.


Monoblock Inverter Air Source Heat Pump with Radiators

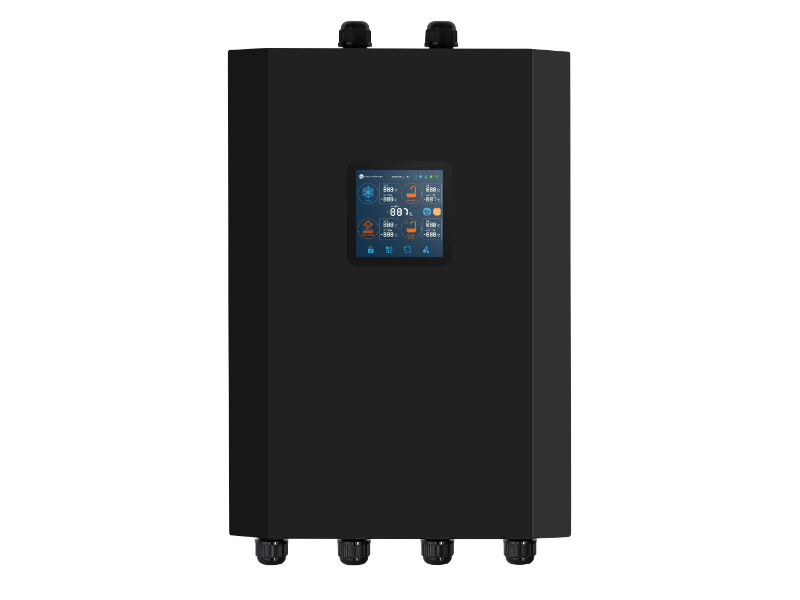

SMART APP REMOTE CONTROL

Our R32 full inverter heat pump are equipped with highly integrated control functions, which can be operated via a remote APP. With a Wi-Fi and 4G/5G connection, you can take full control of your heat pump on your smartphone via an app. The app can be found in the App stores.  The system is easy to manipulate, stable in performance, and is truly a smart operating system.


Monoblock Inverter Air Source Heat Pump with Radiators

47DB(A) QUIET RUNNING

Full inverter compressor and DC brushless fans enable the units to run quietly. Meanwhile, new noise reduction measures are adopted to control the sound of the units at a satisfactory level. Our Self-developed Controller Series can achieve low noise running of 47dB(A) when testing at sound pressure.


Monoblock Inverter Air Source Heat Pump with Radiators


R32 REFRIGERANT

The R32 refrigerant is more environmentally friendly compared to other traditional refrigerants. Its ability to enable an inverter heat pump to recharge and recycle more effectively than some other refrigerants means that the unit can run at much higher efficiencies.


Monoblock Inverter Air Source Heat Pump with Radiators



Air Temp. (C)DB/WBLeavingWater Temp. (C)LCM-60RLCM-90RLCM-140RLCM-180R
HeatingCapacity(kW)7/6357.2910.9415.4020.18
556.299.1911.2314.97
powerinput(kW)7/6351.482.182.264.21
552.012.934.215.56
COP(WW)7/6354.935.014.734.79
553.133.142.672.69
CoolingCapacity(kW)35/24187.2910.5214.3718.40
powerinput(kW)1.592.503.564.90
EER(W/W)4.604.204.043.75
Sound PressureLevel(at1m)Rated [dB(A)]48485151
Maximum Running Current(A)10172531
Rated Water FlowRate(atLWT35℃)(LPM)21314657
Dimensions(Unit)(LxWxH)(mm)1040*421*7571094*421*9101094*451*13891094*451*1389
NetWeight(kg)7686100128
Power Supply(V/Phase/Hz)220~240/1/50
CompressorGMCC
RefrigerantR32
