By utilizing 4 ways valve, provide both heating and cooling mode to create more possibility for pool enjoyment.

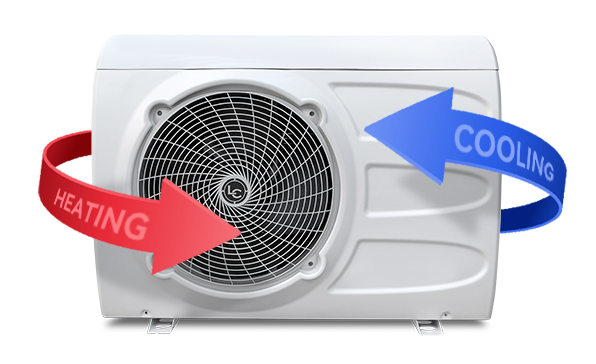

HIGHER EFFICIENT: HEATING/COOLING
By utilizing 4 ways valve, provide both heating and cooling mode to create more possibility for pool enjoyment.
SAVING ENERGY COST
The COP value is more than 6, the energy efficiency ratio is high, and it definitely saves electricity cost. Save about 70% of electricity bills.
REVERSE CYCLE DEFROSTING

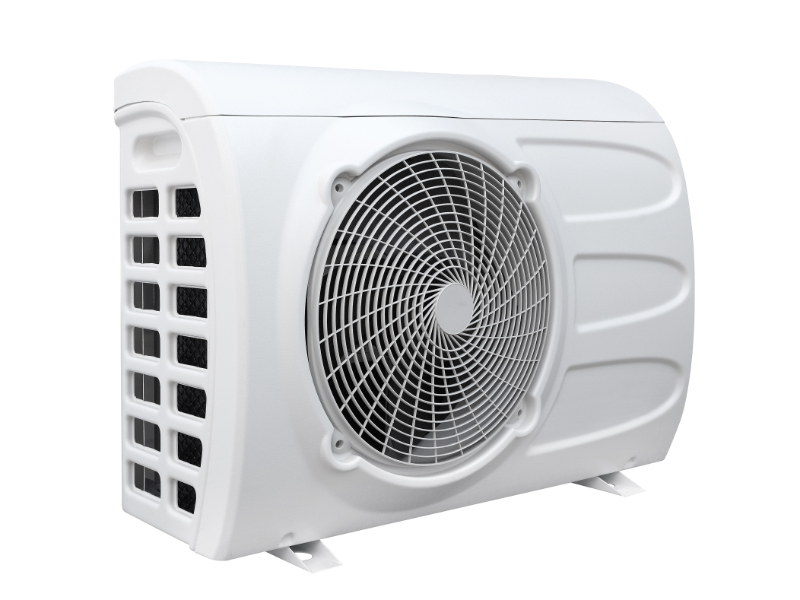

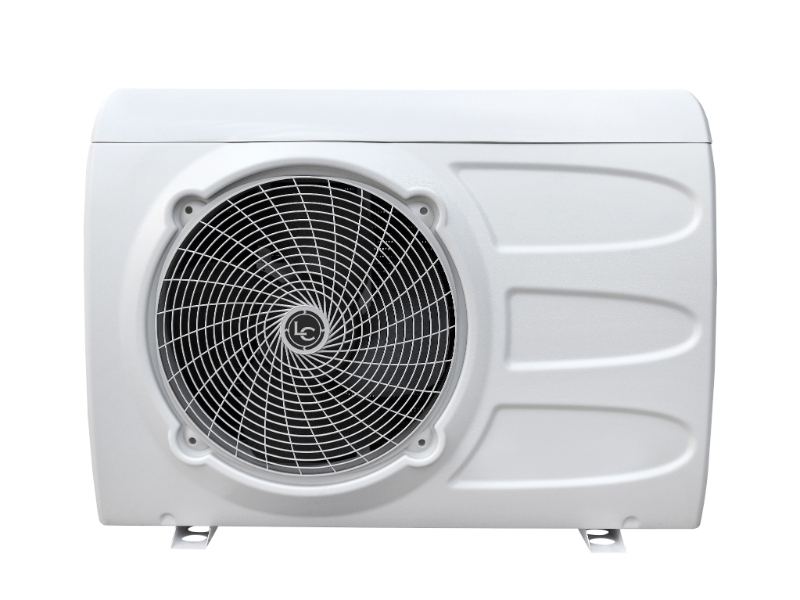

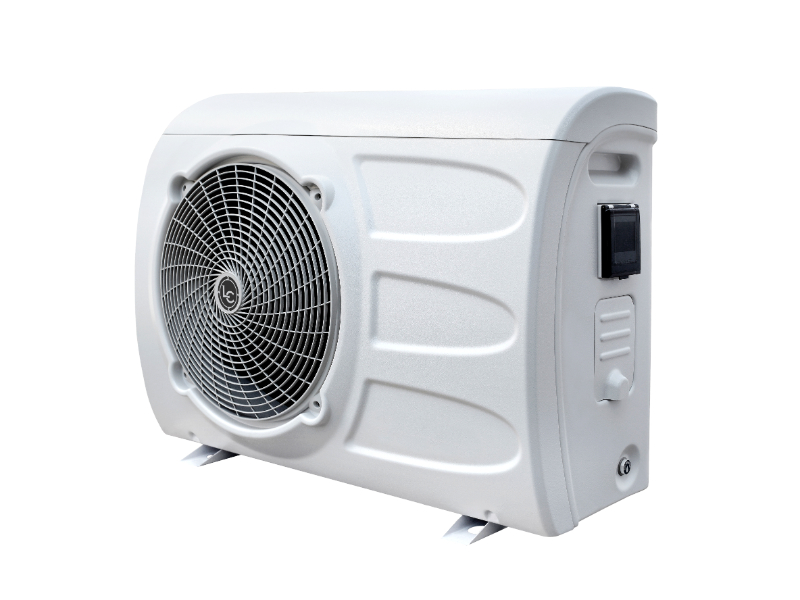

The four-way valve defrosting technology of LC side descharge pool heat pump can automatically start defrosting according to the ambient temperature, plus a specially designed chasis with two drainage holes, the unit always runs in high efficiency.
| Model | LCSPC-70R | LCSPC95R | LCSPC-120R | LCSPC-150R | LCSPC-170R | LCSPC-210R | |
Ambient24℃ Water 26℃in, 28℃out | Capacity(kW) | 7.00 | 9.50 | 12.00 | 15.00 | 17.00 | 21.00 |
| powerinput(kW) | 1.14 | 153 | 1.90 | 237 | 2.80 | 3.43 | |
| COP | 6.13 | 6.21 | 6.30 | 634 | 6.08 | 612 | |
Ambient15℃ Water 26℃in, 28℃out | Capacity(kW) | 5.47 | 7.45 | 9.42 | 11.06 | 13.88 | 16 |
| powerinput(kW) | 1.09 | 1.48 | 181 | 2.12 | 2.72 | 3.13 | |
| COP | 5.03 | 5.05 | 521 | 5.21 | 5.11 | 512 | |
Ambient35℃ Water 29℃in, 27℃out | Capacity(kW) | 536 | 7.15 | 8.73 | 10.86 | 11.62 | 13.07 |
| powerinput(kW) | 159 | 2.02 | 2.53 | 3.08 | 3.86 | 4.34 | |
| EER | 3.38 | 3.54 | 3.45 | 3.53 | 3.01 | 3.01 | |
| Power supply | 220-240V/50Hz | ||||||
| Maxpower input | kW | 184 | 236 | 3.16 | 3.67 | 4.63 | 574 |
| Maxcurrent | A | 8.36 | 10.74 | 14.40 | 16.7 | 223 | 27.4 |
| Unitnet dimensions(mm)L*W*H | 826*379*552 | 933*401*657 | 933*401*657 | 933*401*657 | 1125*470*707 | 1125*470*707 | |
| Compressortype | Rotary | Rotary | Rotary | Rotary | Rotary | Scroll | |
